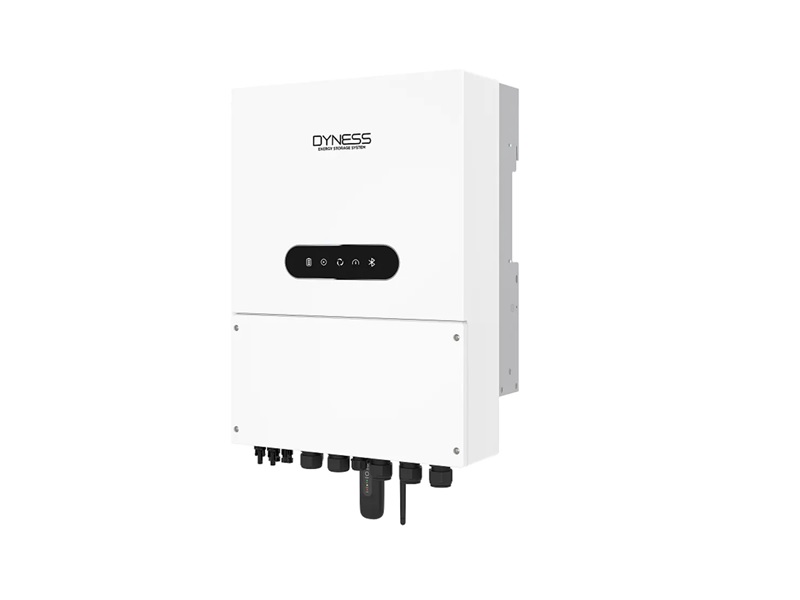

Dyness 5KW Single Phase LV Hybrid Inverter with CT & WIFI Included – Dyne-5.0L-1P-A The DYNE 5.0-L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand. Product Features: Generator connectivity with multiple input methods and automatic generator On/Off control Automatic UPS switching(<4ms) Supports peak shaving control in both "self-use" and "generator" mode Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current 6 customizable charge/discharge time settings 10-second 200% surge power backup overload capability Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel Specifications: Input DC (PV side): Recommended max. PV power: 8 kW Max. input voltage: 600 V Rated voltage: 300 V Start-up voltage: 90 – 520 V Max. input current: 16 A / 16 A Max. short circuit current: 24 A / 24 A Battery: Battery type: Li-ion Max. charge/discharge power: 5 kW Max. charge/discharge current: 112 A Output AC (Grid side): Rated output power: 5 kW Max. output current: 25 A Max. input current: 34.1 A General Dimensions(W*H*D): 405*560*205mm Weight: 24 kg Ingress protection: IP66
