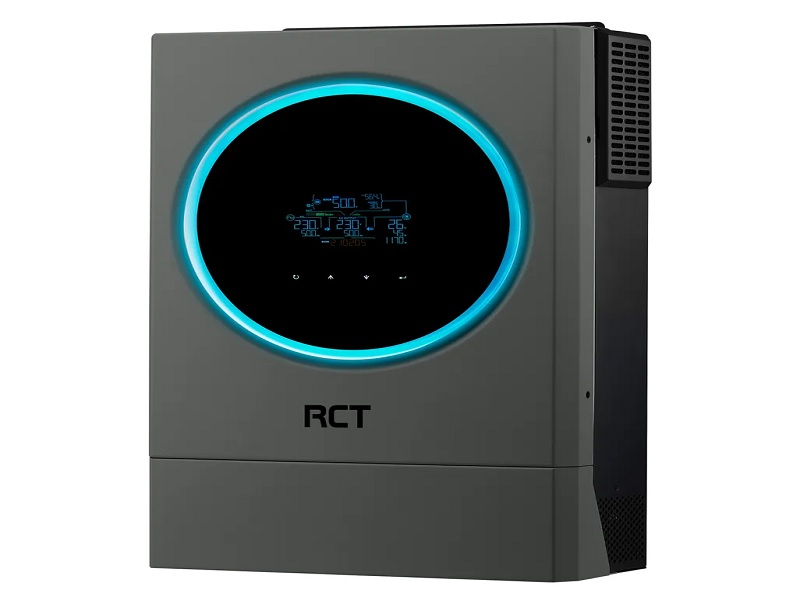

Features Pure sine wave MPPT solar inverter. Customizable status LED ring with RGB lights. Touchable button with 4.3″ coloured LCD. Wide DC input range. Supports USB On-the-Go function. Data log events stored in the inverter. Built-in Wi-Fi for mobile monitoring (App is available). Reserved communication port for BMS. Battery independent function. Parallel operation with up to 9 units. Model: RCT-AXMK4-5.6K48V Rated: 5600VA/5600W. Input Voltage: 230 VAC. Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (Home Appliances). Frequency Range: 55 Hz/60 Hz (Auto sensing). Output AC Voltage Regulation (Batt. Mode): 230VAC 5%. Efficiency (Peak): 93 %. Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances). Waveform: Pure Sine Wave. Overload Capacity: 5s @ ≥ 150% Load, 10s @ ≥ 110% ~ 150% Load, 100ms @ ≥ 200% Load. Battery Battery Voltage: 48 VDC. Floating Charge Voltage: 54 VDC. Overcharge Protection: 66 VDC. Solar charger & AC charger Solar Charger Type: MPPT. Maximum PV Array Power: 6000 W. MPP Range @ Operating Voltage: 120 ~ 450 VDC. Maximum PV Array Open Circuit Voltage: 450 VDC. Maximum Solar Charge Current: 120 A. Maximum AC Charge Current: 120 A.
